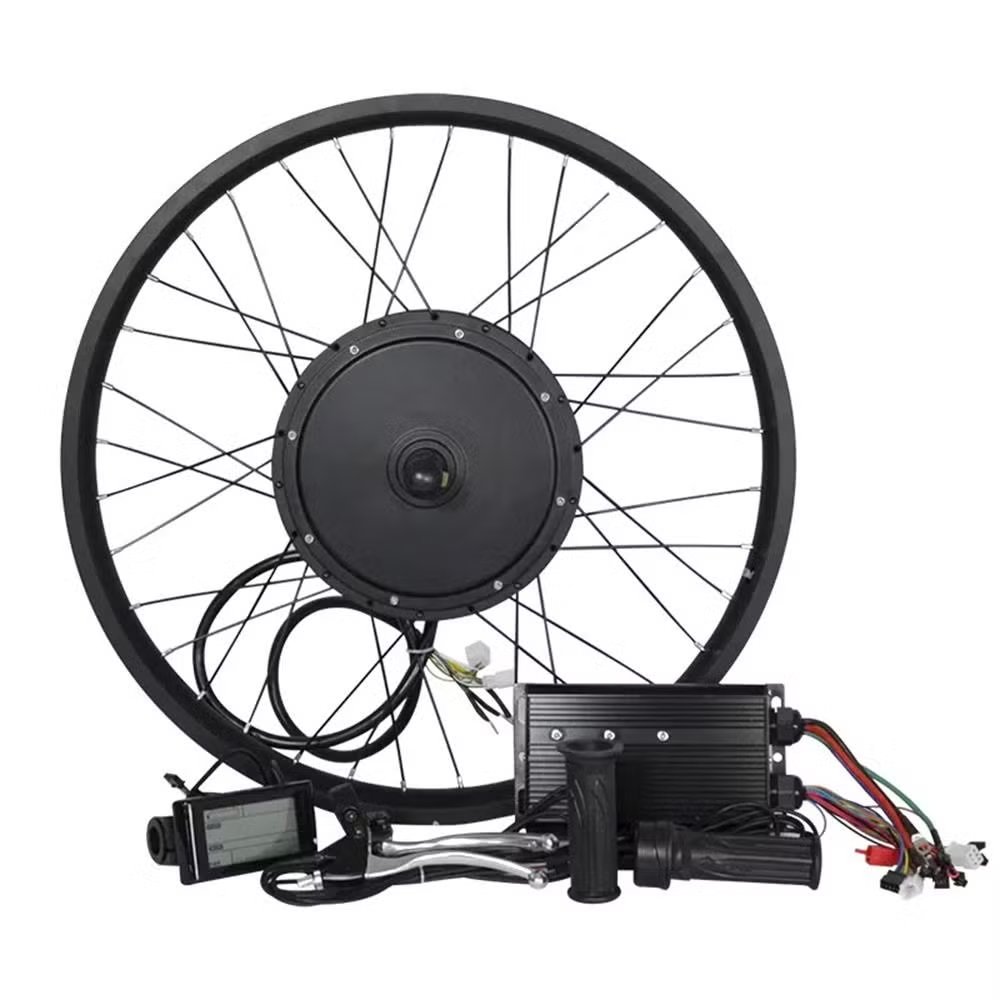

3000W & Far Driver 72450 Controller Kit 20x4 E-Bike Hub Motor kit (170mm Dropout)

Description: The DGWZ 3000W 20x4 E-Bike Hub Motor is designed for high-performance electric bikes. This motor offers a peak power of 5000W and a maximum speed customizable between 30-80km/h based on rider weight. the top speed is still customizable for more power through the fardriver parameters. With a maximum torque of 150N.m and an efficiency of 88%, this motor ensures powerful and efficient performance. It includes a double axle out with a 20x4 rim, disc brake compatibility, and a waterproof grade of IP54, making it durable and reliable for various riding conditions.

Specifications:

• Motor Type: BLDC Hub Motor with Permanent Magnets

• Rated Power: 3000W

• Peak Power: 5000W

• Rated Voltage: 48V/60V/72V

• Speed: 30-80km/h (customizable)

• Max Torque: 150N.m

• Max Efficiency: 88%

• Brake Type: Disc brake

• Rear Fork Width for Installation: 170mm

• Waterproof Grade: IP54

• Color: Black

• Weight: 14kg

• cross spoke

• double hall sensor

BATTERY NOT INCLUDED

NOTE: battery needs to have a 100+ amp BMS

Included in the Kit:

• 1 x DGWZ 3000W 20x4 E-Bike Hub Motor (custom cross spoke)

• 1 x FarDriver 72450 sine wave controller

• 1 x Bluetooth adapter for wireless programming

• 1 x DKD display

• 1 x Front headlight and turn signals

• 1 x Motorcycle 72V/60V horn

• 1 x Back brake light with built-in turn signals

• 1 x Nutt 4 piston hydraulic brakes

• 2.3mm disk brakes

• 1 x 7 speed freewheel

• 1 x 3 speed switch

• Complete wiring harness

• Regular M16 torque arm (Polar Bear M16 torque arm recommended)

• Anti-theft alarm

• Half twist throttle

• Key with battery voltage
